WPK13 Series
MWP13-small-with sensor.jpg
MWP13-Back-2.jpgWPK13 Series
Wall Pack
- Die-cast aluminum housing with bronze powder coat finish
- Clear tempered glass lens for optimal light distribution
- Universal voltage input 120-277V, 50/60 Hz

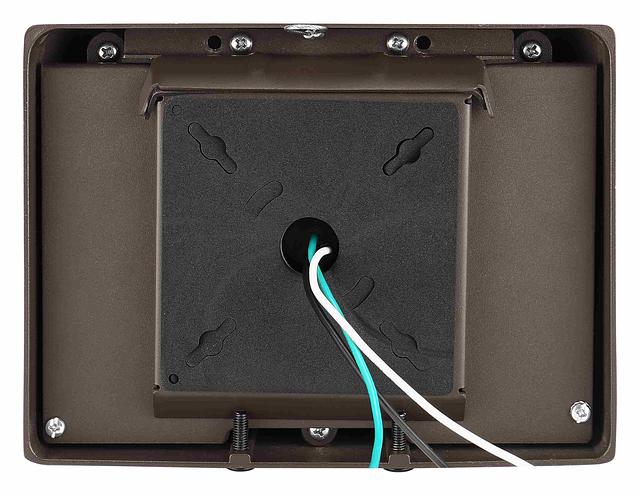

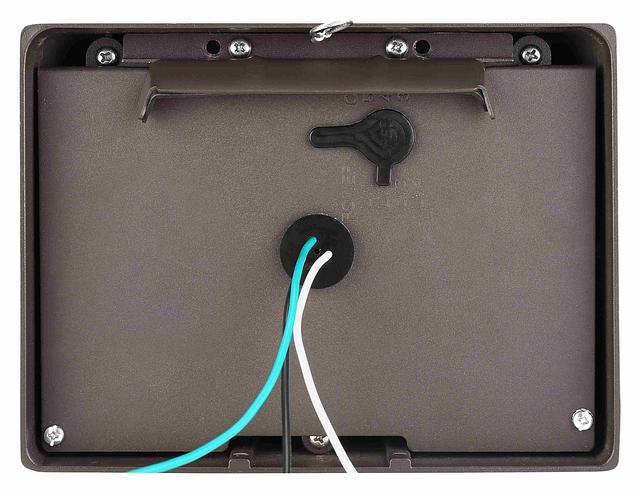

- Rear and side conduit entry for flexible wiring options
- Mounts to a standard 3" J-box or wall surface
- IP65-rated for indoor and outdoor use

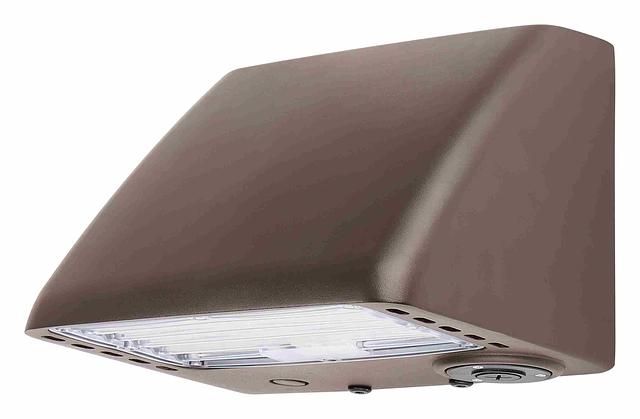

The WPK13 is a modern, low profile wall pack. Available in two sizes, delivering 3,800 to 13,800 lumens with a wide, uniform distribution. With a rugged die-cast housing and UV stabilized polycarbonate optic lens, it is easily customized to fit every building's design aesthetic and a mix of architectural styling and energy savings.
CCT
- 3000K
- 4000K
- 5000K
CRI
- 65
- 70
Color / Finish
- Black
- Dark Bronze
- White
Controls Options

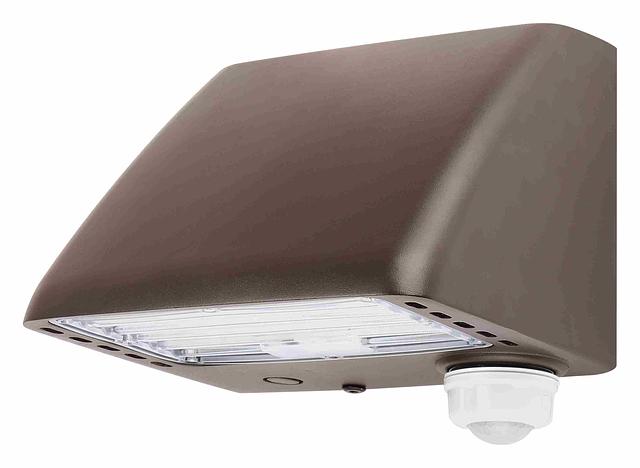

- Infrared Sensor
- Photocell
Dimensions
- W: 11 In.
- W: 10 In. H: 10 In.
- W: 20 In.
- W: 1 In. H: 1 In.
Dimming Protocol
- 0-10 V
Dimming Range
- 10%
Lamp Source
- LED
Listings
- UL
Lumens
- 2001
- 3000
- 10001
- 15000
Materials
- Die-Cast Aluminum
Mounting
- Wall
Ratings & Compliance
- DLC Premium
- Wet
Voltage
- 120-277 V
Warranty
- 5 yr
Watts
- 41.0
- 50.9
- 76.0
- 100.9
