RPM Series
MCP03-White-Side 2.png
image_MCP03 90W_back.png
MCP03-White-Sensor-Emergency Battery-Side 1_116988.png
MCP03-White-Sensor-Side 1.png
MCP03-White-Emergency Battery-Side 1_116987.png
MCP03-White-Side 1.pngRPM Series
Canopy

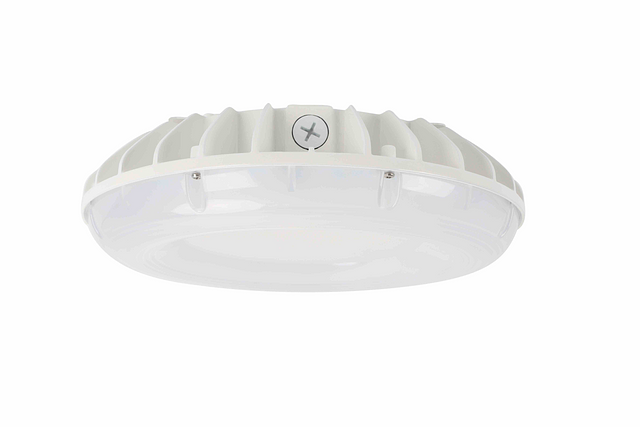

- Durable sealed die-cast aluminum housing suitable for indoor and outdoor applications

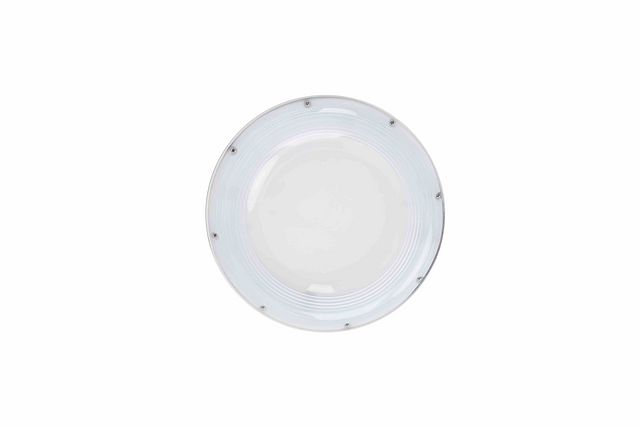

- Round design featuring a ring-shaped luminous surface for uniform decorative illumination
- Dual voltage compatibility: 120-277V and 347V-480V input options
- Operating temperature range from -40°C to 45°C (-40°F to 113°F)

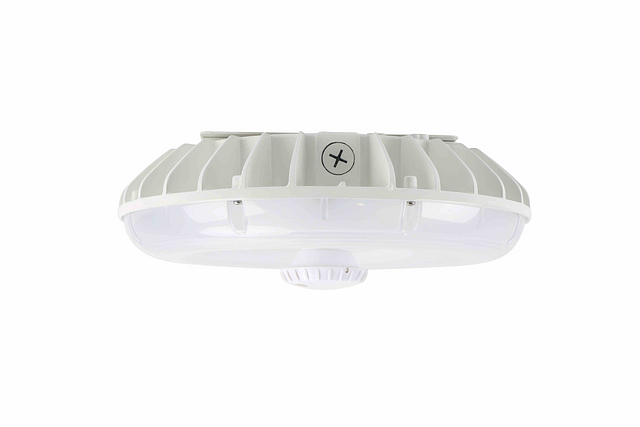

- Optional motion sensor accessory designed for parking garage applications

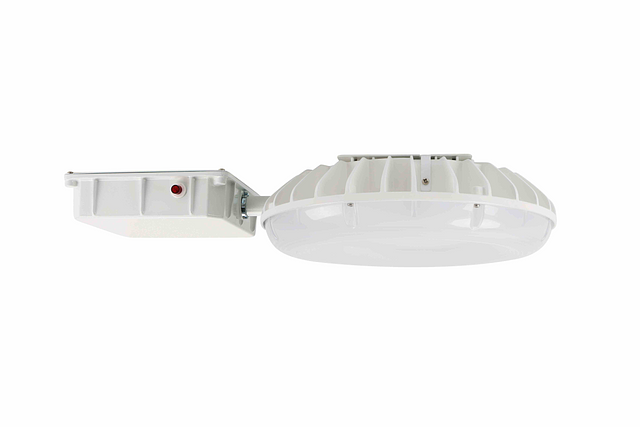

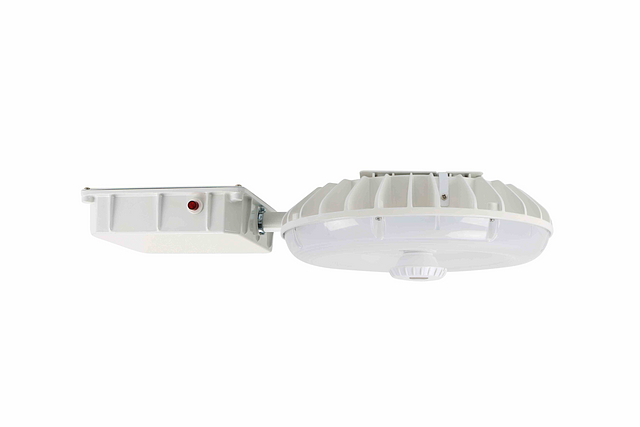

- Optional emergency battery backup available for critical use cases
Durable sealed die-casting profile for indoor and outdoor applications. Round appearance with ring-shaped luminous surface create a decorative look. Optional motion sensor is ideal for parking garages and optional for emergency battery. Operating temperature is -40°C to 45°C (-40°F to 113°F).
CCT
- 4000K
- 5000K
CRI
- 65
- 70
Color / Finish
- White
Controls Options
- Motion Sensor
Dimensions
- W: 11 In. H: 1 In.
- W: 11 In.
- W: 20 In.
- W: 20 In. H: 10 In.
Dimming Protocol
- 0-10 V
Lamp Source
- LED
Listings
- UL
Lumens
- 3001
- 4000
- 10001
- 15000
Materials
- Die-Cast Aluminum
Ratings & Compliance
- DLC Premium
- Wet
Voltage
- 120-277 V
Warranty
- 5 yr
Watts
- 51.0
- 75.9
- 76.0
- 100.9
