SPORTS LIGHT
Product Overview

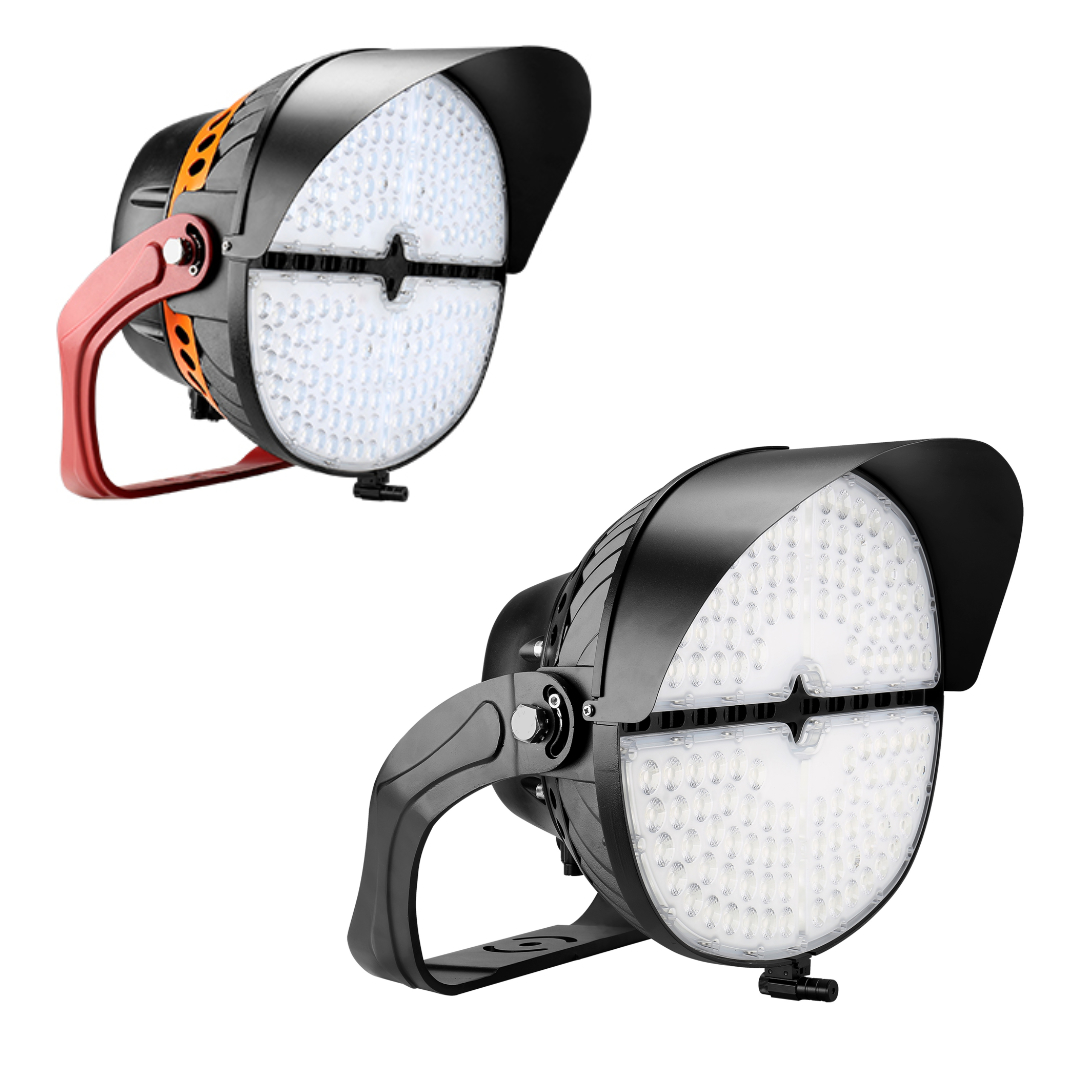

The LSL-5 Series is a high-output LED sports lighting solution designed for demanding outdoor applications such as sports fields, airport aprons, rail centers, and large-area general/security lighting.
It delivers powerful illumination up to 118,000 lumens and supports long-lasting performance with a rated LED lifespan of 100,000 hours.
With a durable die-cast aluminum housing, sealed polycarbonate lens, and integrated surge protection, this fixture is engineered to perform in tough outdoor conditions.
Key Features
- Wattage Options: 350W, 500W, 505W, 600W, 650W, 850W
- Lumen Output: 49,000 – 118,000 lumens
- Luminous Efficacy: 133 – 146 lm/W
- Color Temperatures: 4000K, 5000K, 5700K
- CRI Options: Ra70 / Ra80 / Ra90
- THD: ? 20%
- Power Factor: ? 0.90
- Dimming: 1-10V
Electrical
- Input Voltage Options:
- 120-277V
- 200-480V
- 347-480V
- Surge Protection:
- Max 20kV @ 120-277V
- 4kV @ 277-480V
Construction
- Housing: Sealed Die-Cast Aluminum Alloy
- Lens: Impact-Resistant Polycarbonate
- Standard Mount: Trunnion Bracket
- Optional: 2 3/8" Tenon Yoke Adapter
Environmental Ratings
- Operating Temperature: -40C to +55C (-40F to +131F)
- Ingress Protection: IP65
Recommended Applications
- Outdoor Sports Fields
- Airport Aprons
- Port & Rail Centers
- Large-Area General & Security Lighting
Warranty
